Reverse Engineering Project — 422 kW DC Motor for Spain

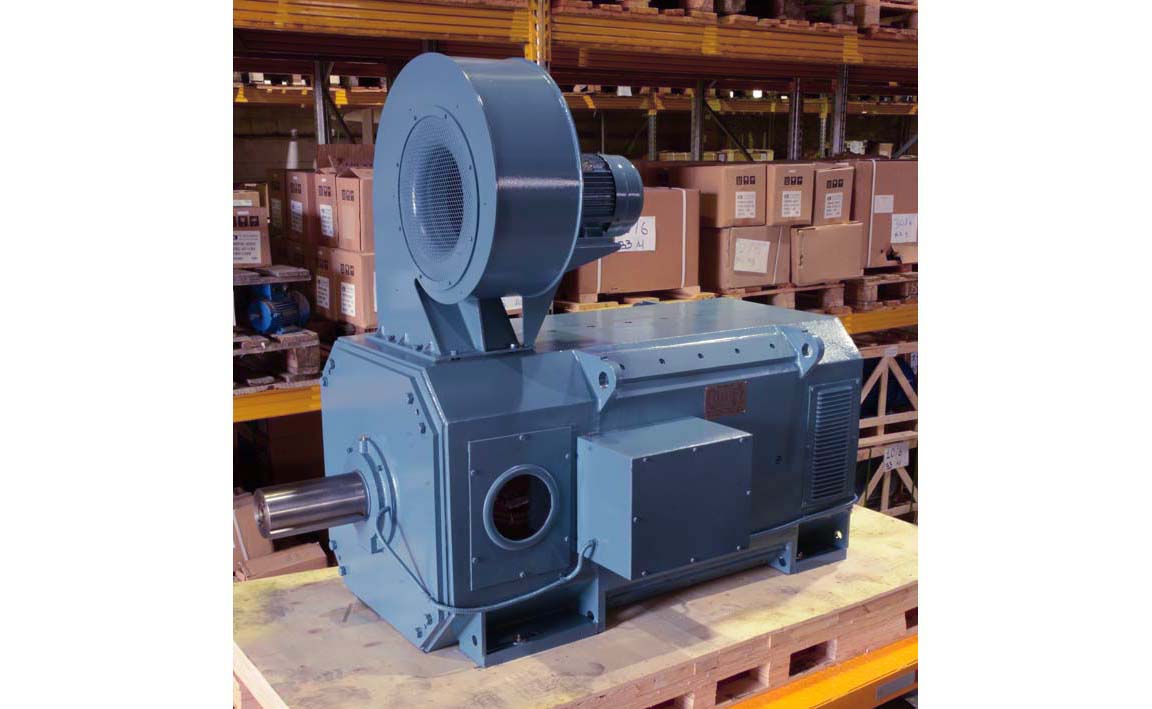

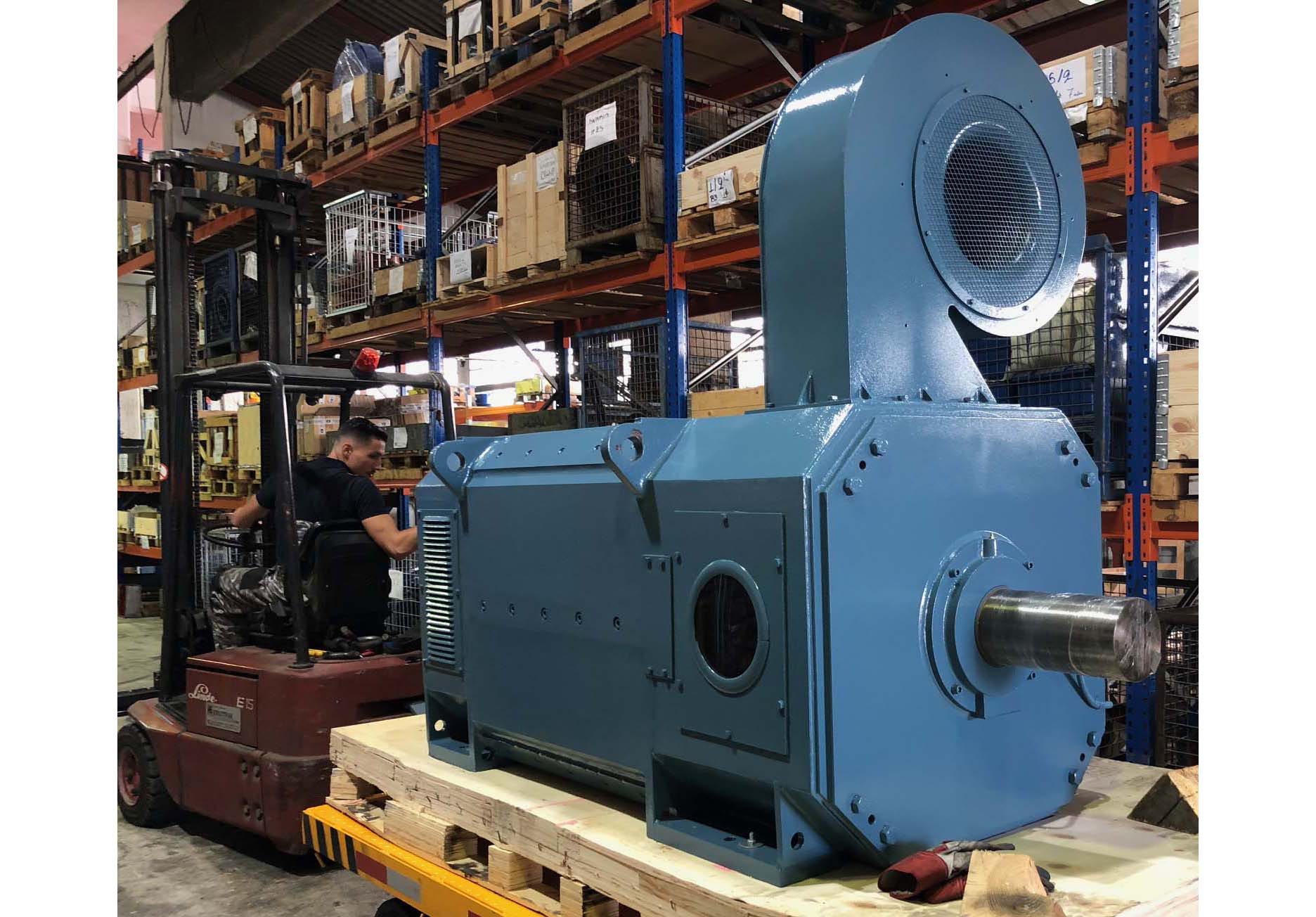

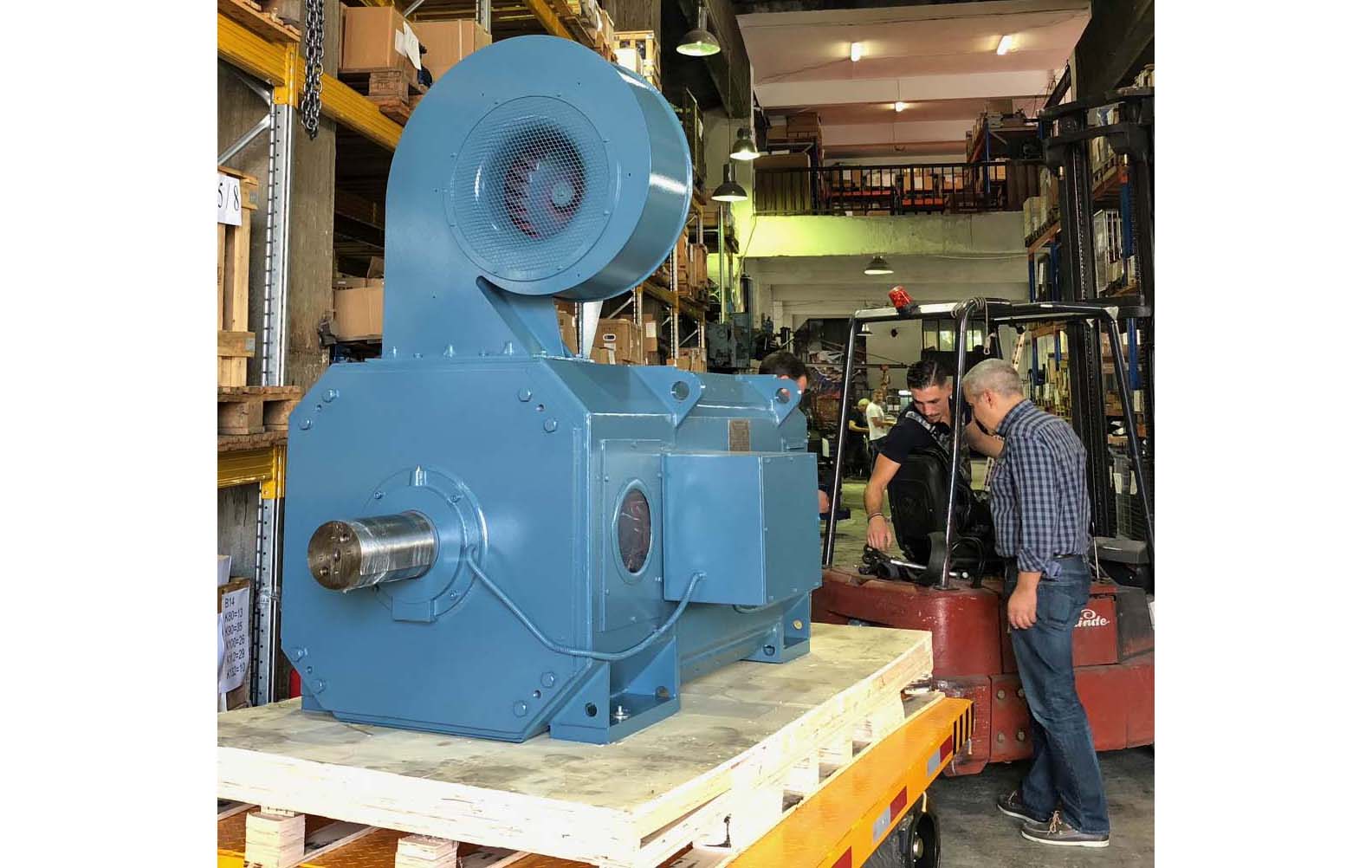

We have successfully completed another reverse engineering project, involving a 422 kW DC motor, double-shaft configuration, Frame 450, destined for an industrial application in Spain.

Projects of this type demonstrate one of the enduring strengths of electric motor engineering: the ability to recreate, adapt, and support critical machinery long after original equipment may have become unavailable or obsolete.

Reverse Engineering in Practice

Reverse engineering is more than reproducing a machine.

It requires a detailed understanding of the original design, the operating environment, and the mechanical and electrical requirements of the installation. Every dimension, tolerance, and performance characteristic must be carefully evaluated to ensure compatibility with the existing system.

For many industrial users, reverse engineering provides a practical solution when replacing an original motor would require extensive modifications to surrounding equipment.

The Role of DC Motors

Although modern industrial installations are often associated with AC motors and variable frequency drives, DC motors continue to serve important roles in many applications requiring precise speed control, high starting torque, or established legacy systems.

Their continued presence in industrial plants around the world reflects decades of proven performance and the substantial investments many facilities have made in existing DC drive infrastructure.

Double-Shaft Configuration

This particular motor was designed with a double-shaft arrangement, a configuration commonly used when power must be transmitted or monitored from both ends of the machine.

Depending on the application, the second shaft may accommodate auxiliary equipment such as tachometers, encoders, generators, braking systems, or other driven components integrated into the overall installation.

Such configurations often require additional attention to rotor dynamics, balancing, alignment, and mechanical tolerances.

Continuing a Tradition of Specialized Solutions

Every reverse engineering project presents its own challenges. Whether the machine is AC or DC, low voltage or high voltage, standard or highly specialized, the objective remains the same: delivering a reliable solution that integrates seamlessly into the customer’s operation.

The successful completion and shipment of this 422 kW Frame 450 DC motor to Spain is another example of that ongoing commitment.
